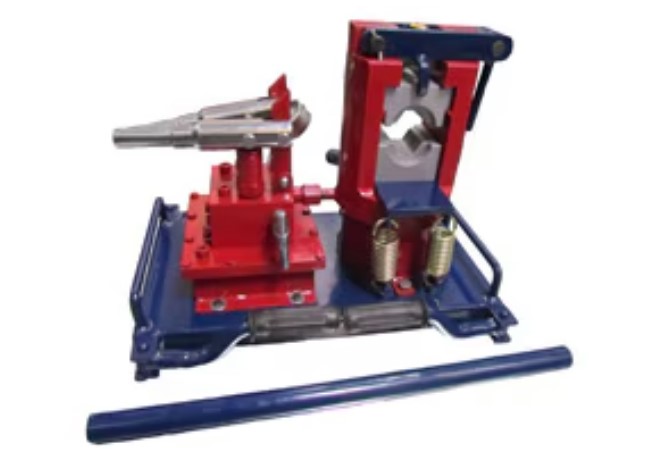

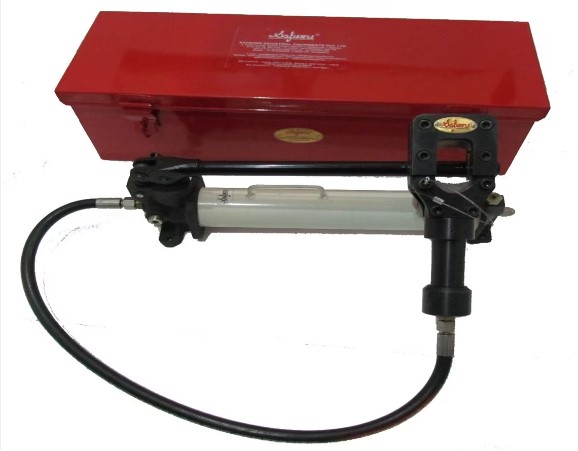

ACSR Compression Machine
Summary of ACSR Compression Machine
An ACSR Compression Machine is a hydraulic or mechanical machine used to compress fittings onto ACSR conductors during the installation or maintenance of overhead power transmission lines.
ACSR stands for Aluminium Conductor Steel Reinforced, a type of conductor widely used in electrical transmission because it combines high conductivity (aluminium) with high tensile strength (steel core).
Key Functions
-
Compression of fittings: Attaches sleeves, joints, and terminals securely to ACSR conductors.
-
Strong electrical connection: Ensures low resistance and reliable current flow.
-
Mechanical strength: Provides firm grip so the conductor can withstand tension and environmental loads.
Main Components
-
Hydraulic pump: Generates pressure for compression.
-
Compression head / dies: Shapes and presses the connector onto the conductor.
-
Control system: Allows the operator to regulate pressure and compression cycles.
-
Frame and support structure: Holds the conductor and fittings in position.
Working Principle
-
The ACSR conductor and compression sleeve/connector are placed inside the compression dies.
-
The hydraulic system applies high pressure.
-
The sleeve is permanently compressed around the conductor strands, forming a strong mechanical and electrical joint.
Applications
-
Overhead power transmission line installation
-
Conductor jointing and repair
-
Substation and grid maintenance
In short:
An ACSR compression machine is a specialized hydraulic tool used in the power industry to securely crimp connectors and joints onto ACSR transmission conductors, ensuring strong mechanical support and reliable electrical connectivity. -
Description
SAPSONS manufacturers complete range of Transmission Line Tools . Our Hydraulic stringing (Compression ) machine available with both hand operated and power operated pumps. These tools are specially designed to work perfectly on all sizes of AAA, AAAC, ACSR conductors (namely Panther, Moose, Dog and Zebra, etc.) of EHV transmission lines.
The crimping blocks (dies) of the Compressor Machines are made out of special alloy steel, heat-treated and chrome plated for best result out of it. Used for Mid-Span joints and dead-end joints, our tool ensures the same mechanical strength and electrical conductivity that of solid conductors.
The compressor machines are available in both Single & Double pump model.
An ACSR Compression Machine is a hydraulic crimping/press machine used in overhead power transmission lines to join or terminate ACSR conductors.
What ACSR Means
ACSR = Aluminum Conductor Steel Reinforced
- Aluminum strands carry current
- Steel core provides mechanical strength
It is widely used for overhead transmission lines because it is strong and lightweight.
What an ACSR Compression Machine Does
The machine compresses (crimps) metal sleeves, joints, or dead-end clamps onto ACSR conductors using high hydraulic pressure.
Typical uses:
- Mid-span conductor jointing
- Dead-end clamp installation
- Repair sleeves
- Jumper connectionsThe compression ensures the joint has high mechanical strength and good electrical conductivity, similar to the original conductor.
🔧 Main Components
An ACSR compression setup usually includes:
- Hydraulic compression head
- Hydraulic pump (manual / electric / petrol)
- Dies set (different sizes for different conductors)
- Hydraulic hose
- Pressure gaugeTypical Specifications
Parameter Typical Value Compression force 100–300 tons Hydraulic pressure ~700–750 bar Conductor size 10–400mm²or more) Die type Hexagonal / circular Power source Manual or motorized hydraulic pump - Machines with 100–150 ton output are common for transmission line work. An ACSR compression machine is a hydraulic press used by linemen to crimp sleeves and fittings onto ACSR conductors to make strong electrical joints in transmission lines.
- Â Where It Is Used
- Power transmission line construction
- Substation jumper connections
- Transmission line maintenance
- Conductor repair work
Lines such as 33 kV – 800 kV transmission systems commonly use these machines.
Brand
Sapsons
