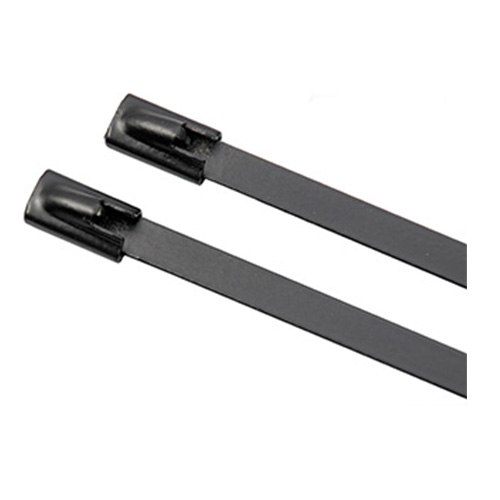

Ball Lock – Coated

Designed with Wedge Lock Mechanism System, it is offered with Epoxy/Pure Polyester coating. Multi-colored cable ties are available upon request.

  • Ball Lock Cable Ties are designed with Wedge Lock Mechanism System for quick installation with low insertion force.
  • They are resistant to corrosion and suitable for indoor, outdoor or harsh environments.
Category:

Description

Part No. for Stainless Steel Grade  Width  Length  Thickness  Max. Bundling Diameter  Min. Loop Tensile Strength
SS304  SS316  In  mm  In  mm  In  mm  In  mm  N  lbs
Ball Lock – 4.6 mm width
BC44-100 BC46-100 0.18 4.6 4 100 0.01 0.25 0.7 18 667 150
BC44-127 BC46-127 0.18 4.6 5 127 0.01 0.25 1.1 27 667 150
BC44-150 BC46-150 0.18 4.6 6 150 0.01 0.25 1.3 34 667 150
BC44-200 BC46-200 0.18 4.6 8 200 0.01 0.25 2 50 667 150
BC44-250 BC46-250 0.18 4.6 9.8 250 0.01 0.25 2.6 66 667 150
BC44-260 BC46-260 0.18 4.6 10 260 0.01 0.25 2.7 69 667 150
BC44-300 BC46-300 0.18 4.6 11.8 300 0.01 0.25 3.2 82 667 150
BC44-360 BC46-360 0.18 4.6 14 360 0.01 0.25 3.9 100 667 150
BC44-400 BC46-400 0.18 4.6 15.7 400 0.01 0.25 4.5 114 667 150
BC44-450 BC46-450 0.18 4.6 17.7 450 0.01 0.25 5.1 130 667 150
BC44-520 BC46-520 0.18 4.6 20 520 0.01 0.25 5.9 151 667 150
BC44-620 BC46-620 0.18 4.6 24 620 0.01 0.25 7.2 183 667 150
BC44-680 BC46-680 0.18 4.6 26.8 680 0.01 0.25 8 203 667 150
BC44-840 BC46-840 0.18 4.6 33 840 0.01 0.25 10 253 667 150
BC44-1000 BC46-1000 0.18 4.6 39 1000 0.01 0.25 12 304 667 150
Ball Lock – 7.9 mm width
BC74-100 BC76-100 0.31 7.9 4 100 0.01 0.25 0.7 18 1112 250
BC74-127 BC76-127 0.31 7.9 5 127 0.01 0.25 1.1 27 1112 250
BC74-150 BC76-150 0.31 7.9 6 150 0.01 0.25 1.3 34 1112 250
BC74-200 BC76-200 0.31 7.9 8 200 0.01 0.25 2 50 1112 250
BC74-250 BC76-250 0.31 7.9 9.8 250 0.01 0.25 2.6 66 1112 250
BC74-260 BC76-260 0.31 7.9 10 260 0.01 0.25 2.7 69 1112 250
BC74-300 BC76-300 0.31 7.9 11.8 300 0.01 0.25 3.2 82 1112 250
BC74-360 BC76-360 0.31 7.9 14 360 0.01 0.25 3.9 100 1112 250
BC74-400 BC76-400 0.31 7.9 15.7 400 0.01 0.25 4.5 114 1112 250
BC74-450 BC76-450 0.31 7.9 17.7 450 0.01 0.25 5.1 130 1112 250
BC74-520 BC76-520 0.31 7.9 20 520 0.01 0.25 5.9 151 1112 250
BC74-620 BC76-620 0.31 7.9 24 620 0.01 0.25 7.2 183 1112 250
BC74-680 BC76-680 0.31 7.9 26.8 680 0.01 0.25 8 203 1112 250
BC74-840 BC76-840 0.31 7.9 33 840 0.01 0.25 10 253 1112 250
BC74-1000 BC76-1000 0.31 7.9 39 1000 0.01 0.25 12 304 1112 250
Ball Lock – Heavy Duty – 12.7 mm width
BC124-100 BC126-100 0.5 12.7 4 100 0.02 0.4 0.7 18 3115 700
BC124-150 BC126-150 0.5 12.7 6 150 0.02 0.4 1.3 34 3115 700
BC124-200 BC126-200 0.5 12.7 8 200 0.02 0.4 2 50 3115 700
BC124-260 BC126-260 0.5 12.7 10 260 0.02 0.4 2.7 69 3115 700
BC124-360 BC126-360 0.5 12.7 14 360 0.02 0.4 3.9 100 3115 700
BC124-520 BC126-520 0.5 12.7 20 520 0.02 0.4 5.9 151 3115 700
BC124-620 BC126-620 0.5 12.7 24 620 0.02 0.4 7.2 183 3115 700
BC124-840 BC126-840 0.5 12.7 33 840 0.02 0.4 10 253 3115 700
BC124-1000 BC126-1000 0.5 12.7 39 1000 0.02 0.4 12 304 3115 700
Ball Lock – Heavy Duty – 16.0 mm width
BC164-150 BC166-150 0.63 16 6 150 0.02 0.4 1.3 34 3560 800
BC164-200 BC166-200 0.63 16 8 200 0.02 0.4 2 50 3560 800
BC164-260 BC166-260 0.63 16 10 260 0.02 0.4 2.7 69 3560 800
BC164-360 BC166-360 0.63 16 14 360 0.02 0.4 3.9 100 3560 800
BC164-520 BC166-520 0.63 16 20 520 0.02 0.4 5.9 151 3560 800
BC164-620 BC166-620 0.63 16 24 620 0.02 0.4 7.2 183 3560 800
BC164-840 BC166-840 0.63 16 33 840 0.02 0.4 10 253 3560 800
BC164-1000 BC166-1000 0.63 16 39 1000 0.02 0.4 12 304 3560 800



Technical Information

Parameter Value
Material A) 316 grade non-magnetic stainless steel
B)304grade non-magnetic stainless steel
Temperature Range -60°C to +150°C
Surface Finish Epoxy Coating/Pure Polyester
Flammability Rating UL94 fireproof, Halogen free and UV-resistant
Multicolor Available
Tested Fire Rated & Short Circuit Test
Package Quantity 100 Pcs/Bag

Brand

Raychem RPG
