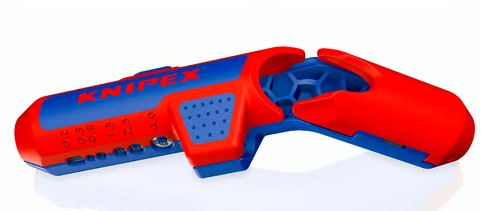

Knipex 16 95 03 SB ErgoStrip PV
Summary – 16 95 03 SB KNIPEX ErgoStrip® PV
The KNIPEX ErgoStrip® PV 16 95 03 SB is a compact, ergonomic cable stripping and dismantling tool specially developed for solar photovoltaic (PV) installations and electrical wiring work.
Typical Applications
- Solar PV installations
- Electrical panel wiring
- Industrial maintenance
- Residential electrical work
- Cable preparation for MC4 solar connectors
Electricians and installers commonly praise the ErgoStrip series for saving time and providing clean, repeatable stripping results during repetitive cable work.
Description
KNIPEX ErgoStrip® PV 16 95 03 SB
The Knipex 16 95 03 SB ErgoStrip PV Cable Stripping Tool is a professional wire-stripping and cable-sheathing tool designed mainly for photovoltaic (solar PV) cable installations.
Key Features :
- Designed for fast and precise stripping of:
- PV cables: 4 mm² and 6 mm² (e.g. H1Z2Z2-K)
- Common round and damp-proof installation cables
- NYM cables from 3 × 1.5 mm² to 5 × 2.5 mm²
- Adjustable stripping length stop:
- 6–18 mm
- Suitable for standard solar connectors
- Ergonomic pistol-grip design for:
- Cutting
- Stripping
- Longitudinal sheath cutting
- Built-in stripping mechanism for PVC single conductors:
- 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4.0 mm²
- Slim tapered ends for tight working spaces
- Opening spring and locking mechanism
- Soft multi-component grip for comfort and secure handling
- Lightweight and portable
Technical Specifications :
| Specification | Value |
| Model | 16 95 03 SB |
| Weight | 65 g |
| Cable Diameter | Ø 8–13 mm |
| Stripping Capacity | 0.2–4.0 mm² |
| Dimensions | 135 × 85 × 38 mm |
| EAN | 4003773092605 |
Electricians and solar installers often praise the ErgoStrip series for speed and convenience when working with round cables and PV wiring. Reddit users frequently describe it as a “daily carry” tool for flex and industrial cable work.
Brand
Knipex
