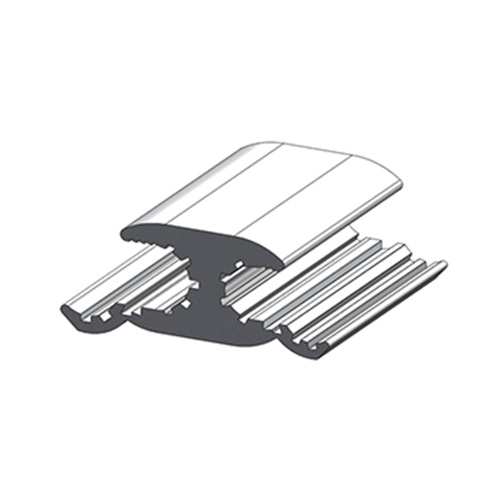

Low Loss Boltless C-Wedge Connectors
Boltless low power loss C-Wedge Type Connectors used in Distribution and High Voltage Networks. AMPACT C-Wedge type Boltless Connectors used for same or different conductor combination or on solid rod equipment terminal connections. Consisting of 2 parts, C-Body and Wedge, it prevents degradation and achieves significantly lower resistance. Thermal cycling causes conductors to expand and contract, but the Connector C-Body spring effect maintains constant contact pressure. It is light in weight and easy to install with power-actuated tools.
- Available for same/different conductor combinations
- More contact surface and no oxidation at connection interface
- Used in Distribution, Sub-stations and Transmission Systems
- Elastic property of C-Member maintains constant force within the connection for life of the connector, while compensating for thermal expansion or creep
- Simple, fool proof method for installation; no fatigue for operator for series of installations and ensures installation process with repeatability and reliability
- Wedge locking prevents loosening of connections
- Easy removal of connector without damaging conductors and re-usable
- Type tested as per IS: 5561 and ANSI 119.4
- Approved by several utilities like KPTCL, KSEB, HVPNL, APTRANSCO, GETCO, TANTRANSCO etc., up to 400kV; we are in the process of qualifying for 765kV application
Description
Specifications
| Sr.No. | Connector | Network | Conductor Range (mm) | |||
|---|---|---|---|---|---|---|
| Main Conductor | Tap Conductor | |||||
| Min. | Max. | Min. | Max. | |||
| 1 | AMPACT Universal Distribution Connector (UDC) | Distribution | 3.17 | 14.6 | 1.74 | 10.11 |
| 2 | AMPACT Mini Wedge Connector | Distribution / Sub-station | 9.25 | 19.05 | 6.53 | 18.69 |
| 3 | AMPACT Wedge Connector | Distribution / Sub-station / Transmission | 9.25 | 38.2 | 9.25 | 36.2 |
| 4 | AMPACT Paddle | Sub-station | 2/4 Hole Paddle | |||
| 610/895/1400 Amp | ||||||
| Shank Dia – 12/18/28 mm | ||||||
| 5 | Palm Connector | Sub-station | Palm Connector D50/D40/D38/D30/D22 | |||
Technical Information
| SL. No. | Description | Value Guaranteed by the Bidder |
|---|---|---|
| 1. | Reference standards | IS 5561 and ANSI 119.4 |
| 2. | AMPACT Universal Distribution Connector (UDC): | |
| a) | Material of C-Body | Tin plated Copper Alloy |
| b) | Material of wedge | Tin plated Copper Alloy |
| c) | Hardware | Not Applicable |
| d) | Installation Tool | Parallel Jaw Piller |
| e) | Corrosion Resistance | Pre coated with Corrosion Inhibitor Compound |
| 3. | AMPACT Mini Wedge Connector/Wedge Connector: | |
| a) | Material of C-Body | Alu. Alloy |
| b) | Material of Wedge | Alu. Alloy |
| c) | Hardware | Not Applicable |
| d) | Installation & Application Tooling | Light weight power actuated tool |
| e) | Non-Metallic Material of Connector | Anti-Corrosion Inhibitor (Pre applied by the factory) contain metallic abrasive grit. |
| 4. | Palm Connector: | |
| a) | Type of Palm Connector | Bolted Type |
| b) | Material of Palm Connector | Brass 60/40 |
| c) | Hardware | Hot Dip Galvanized Steel |
| 5. | Paddle: | |
| a) | Type of Paddle | Bolted Type |
| b) | Material of Paddle | Alu. Alloy |
| 6. | Packing details | Standard Wooden Box Packing |
Brand
Raychem RPG
