Description

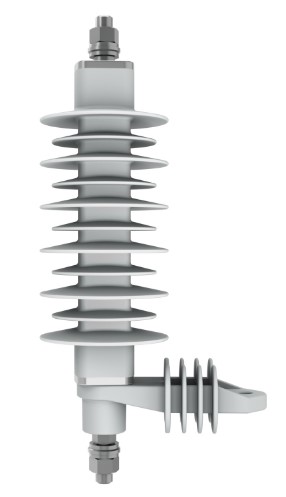

Raychem MV Surge Arresters (up to 52 kV) are medium-voltage, polymeric (silicone-housed) lightning/surge protection devices designed for distribution and substation applications. Below is a structured technical description suitable for study notes or specifications.

🔹 General Description :

Raychem MV surge arresters are metal-oxide (ZnO/MOV) gapless arresters used to protect electrical equipment and networks from lightning and switching over voltages. They are designed for systems up to 52 kV rated voltage class and comply with IEC 60099-4 standards.

They are widely used in:

• Substations
• Distribution lines (overhead & underground)
• Transformers, switchgear, and cable terminations

🔹 Construction & Design Features :

1. Metal Oxide Varistor (MOV) Technology

• Core element consists of ZnO varistor blocks with highly non-linear V-I characteristics
• Conducts negligible current under normal voltage
• Becomes conductive during surge → diverts surge to ground
• Provides fast response and precise voltage clamping

2. Gapless Design

• No series spark gaps (unlike older SiC arresters)
• Ensures:

• • Better protection levels
  • Faster operation
  • Improved reliability in polluted environments

3. Polymeric (Silicone Rubber) Housing

• Direct moulded, hydrophobic silicone housing
• Advantages:

• • Resistant to moisture ingress
  • Excellent pollution performance
  • Lightweight and shatter-proof (non-explosive failure)

4. Mechanical Construction

• Fiberglass/FRP reinforced core with epoxy bonding
• Aluminium end fittings
• High mechanical strength (cantilever & tensile)
• Compact and lightweight design

🔹 Electrical Characteristics (Typical for up to 52 kV class) :

• Rated Voltage (Ur): up to 52 kV
• Continuous Operating Voltage (Uc): selected based on system voltage
• Nominal Discharge Current: typically, 5–10 kA (8/20 µs waveform)
• High Current Impulse: up to 100 kA (4/10 µs)
• Energy Handling Capability: high (line discharge class as per IEC)
• Low Residual Voltage: ensures better insulation protection

🔹 Performance Features :

• Excellent temporary overvoltage (TOV) withstand capability
• High energy absorption capacity
• Non-linear characteristic ensures effective surge suppression
• Safe non-shattering short-circuit behaviour
• Maintenance-free operation
• Long service life in harsh outdoor environments

🔹 Advantages :

• Improved protection of costly equipment (transformers, switchgear)
• Reduced system outages and failures
• Superior performance in polluted, humid, or coastal conditions
• Lightweight and easy installation
• Reliable operation for both indoor and outdoor applications

🔹 Applications :

• Medium-voltage distribution networks
• Substation equipment protection
• Cable terminations and feeders
• Motors and capacitor banks
• Railway electrification systems

Raychem MV surge arresters up to 52 kV are modern, gapless ZnO-based protective devices with polymeric insulation, offering:

• High reliability
• Superior surge protection
• Robust mechanical and environmental performance

They represent a significant improvement over conventional gapped arresters, especially in medium-voltage power systems requiring dependable overvoltage protection.
