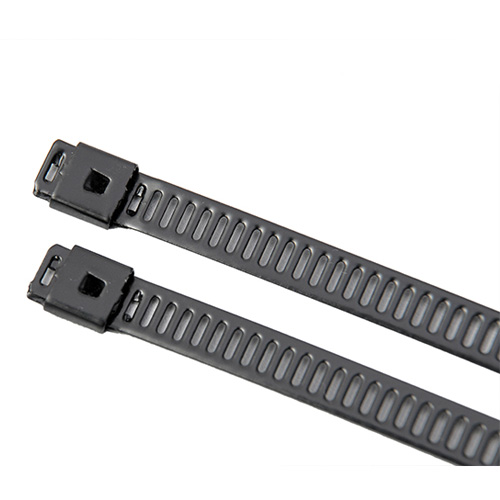

Ladder Type Cable Ties – Coated

Ladder Type Cable ties with Pure Polyester coating, using ratchet mechanism.

Ladder Type Cable Ties are designed with Ratchet Mechanism System.
They are resistant to corrosion and suitable for indoor, outdoor or harsh environments.

Description

Part No. for Stainless Steel Grade		Width		Length		Thickness		Max. Bundling Diameter		Min. Loop Tensile Strength
SS304	SS316	In	mm	In	mm	In	mm	In	mm	N	lbs
Ladder Type – 7 mm width
LU74-150	LU76-150	0.28	7	6	150	0.012	0.3	1.3	34	445	100
LU74-200	LU76-200	0.28	7	8	200	0.012	0.3	2	50	445	100
LU74-225	LU76-225	0.28	7	9	225	0.012	0.3	2.3	58	445	100
LU74-250	LU76-250	0.28	7	10	250	0.012	0.3	2.6	66	445	100
LU74-300	LU76-300	0.28	7	12	300	0.012	0.3	3.1	80	445	100
LU74-360	LU76-360	0.28	7	14	360	0.012	0.3	3.9	99	445	100
LU74-450	LU76-450	0.28	7	18	450	0.012	0.3	5	128	445	100
LU74-600	LU76-600	0.28	7	24	600	0.012	0.3	6.9	176	445	100
LU74-610	LU76-610	0.28	7	24	610	0.012	0.3	7	179	445	100
LU74-750	LU76-750	0.28	7	30	750	0.012	0.3	8.8	224	445	100
LU74-1000	LU76-1000	0.28	7	39	1000	0.012	0.3	11.9	303	445	100
Ladder Type – 12 mm width
LU124-150	LU126-150	0.47	12	6	150	0.012	0.3	1.3	34	1112	250
LU124-200	LU126-200	0.47	12	8	200	0.012	0.3	2	50	1112	250
LU124-225	LU126-225	0.47	12	9	225	0.012	0.3	2.3	58	1112	250
LU124-250	LU126-250	0.47	12	10	250	0.012	0.3	2.6	66	1112	250
LU124-300	LU126-300	0.47	12	12	300	0.012	0.3	3.1	80	1112	250
LU124-360	LU126-360	0.47	12	14	360	0.012	0.3	3.9	99	1112	250
LU124-450	LU126-450	0.47	12	18	450	0.012	0.3	5	128	1112	250
LU124-600	LU126-600	0.47	12	24	600	0.012	0.3	6.9	176	1112	250
LU124-610	LU126-610	0.47	12	24	610	0.012	0.3	7	179	1112	250
LU124-750	LU126-750	0.47	12	30	750	0.012	0.3	8.8	224	1112	250
LU124-1000	LU126-1000	0.47	12	39	1000	0.012	0.3	11.9	303	1112	250

Parameter	Value
Material	A) 316 grade non-magnetic stainless steel
Material	B)304grade non-magnetic stainless steel
Temperature Range	-60°C to +150°C
Surface Finish	Pure Polyester Coating
Flammability Rating	UL94 fireproof, Halogen free and UV-resistant
Package Quantity	100 Pcs/Bag
