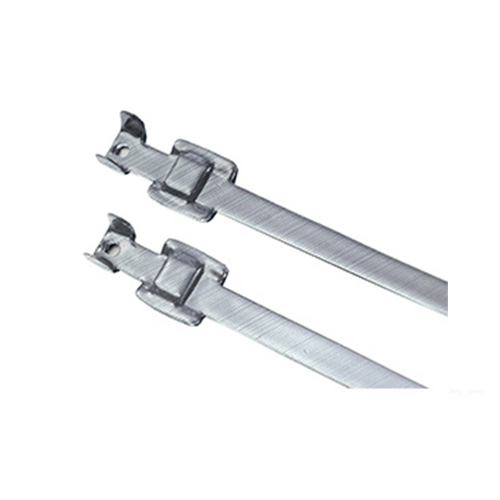

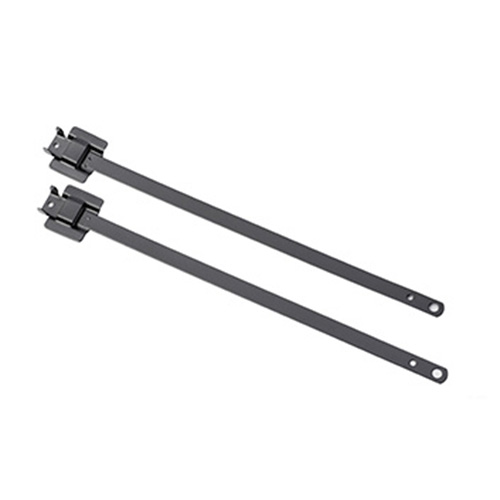

Releasable Cable Ties – Coated
Releasable type cable ties with special grade polymer coating with PPA-517 material for superior hygroscopic and corrosion resistance properties, they are reusable and convenient for temporary installation and cable pulling.
- Releasable Cable Ties are used for multiple installation over long period of time.
- They are made with special grade polymer coating for superior hygroscopic and corrosion resistance properties and suitable for indoor, outdoor or harsh environments.
Description
| Part No. for Stainless Steel Grade | Width | Length | Thickness | Max. Bundling Diameter | Min. Loop Tensile Strength | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SS304 | SS316 | In | mm | In | mm | In | mm | In | mm | N | lbs |
| Releasable Cable Ties – 6.35mm width | |||||||||||
| RCp64-152 | RCp66-152 | 1/4 | 6.35 | 6 | 152 | 0.035 | 0.9 | 1.3 | 34 | 1334 | 300 |
| RCp64-229 | RCp66-229 | 1/4 | 6.35 | 9 | 229 | 0.035 | 0.9 | 2.3 | 59 | 1334 | 300 |
| RCp64-305 | RCp66-305 | 1/4 | 6.35 | 12 | 305 | 0.035 | 0.9 | 3.6 | 91 | 1334 | 300 |
| RCp64-457 | RCp66-457 | 1/4 | 6.35 | 18 | 457 | 0.035 | 0.9 | 5 | 129 | 1334 | 300 |
| RCp64-610 | RCp66-610 | 1/4 | 6.35 | 24 | 610 | 0.035 | 0.9 | 7 | 177 | 1334 | 300 |
| RCp64-762 | RCp66-762 | 1/4 | 6.35 | 30 | 762 | 0.035 | 0.9 | 8.6 | 225 | 1334 | 300 |
| RCp64-914 | RCp66-914 | 1/4 | 6.35 | 36 | 914 | 0.035 | 0.9 | 10.8 | 273 | 1334 | 300 |
| Releasable Cable Ties – 9.53mm width | |||||||||||
| RCp94-152 | RCp96-152 | 3/8 | 9.53 | 6 | 152 | 0.035 | 0.9 | 1.3 | 34 | 2000 | 450 |
| RCp94-229 | RCp96-229 | 3/8 | 9.53 | 9 | 229 | 0.035 | 0.9 | 2.3 | 59 | 2000 | 450 |
| RCp94-305 | RCp96-305 | 3/8 | 9.53 | 12 | 305 | 0.035 | 0.9 | 3.6 | 91 | 2000 | 450 |
| RCp94-457 | RCp96-457 | 3/8 | 9.53 | 18 | 457 | 0.035 | 0.9 | 5 | 129 | 2000 | 450 |
| RCp94-610 | RCp96-610 | 3/8 | 9.53 | 24 | 610 | 0.035 | 0.9 | 7 | 177 | 2000 | 450 |
| RCp94-762 | RCp96-762 | 3/8 | 9.53 | 30 | 762 | 0.035 | 0.9 | 8.6 | 225 | 2000 | 450 |
| RCp94-914 | RCp96-914 | 3/8 | 9.53 | 36 | 914 | 0.035 | 0.9 | 10.8 | 273 | 2000 | 450 |
Technical Information
| Parameter | Value |
|---|---|
| Material | A) 316 grade non-magnetic stainless steel |
| B)304 grade non-magnetic stainless steel | |
| Temperature Range | -60°C to +150°C |
| Surface Finish | PPA 571 Coating |
| Base Metal Thickness | 0.5 mm |
| Flammability Rating | UL94 fireproof, Halogen free and UV-resistant |
| Package Quantity | 100 Pcs/Bag |
Brand
Raychem RPG
