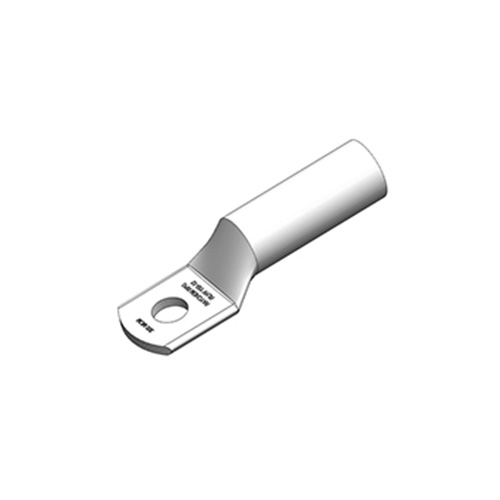

RLDS - One-Hole Lugs - Copper lugs as per DIN 46235

RLDS – One-Hole Lugs – Copper lugs as per DIN 46235

Design and construction as per DIN 46235 Standard

  • One-Hole Lugs – DIN 46235 for copper conductors ranging from 6 – 1000 mm2
Category:

Description

Nominal Cross Section mm2 Catalogue Code Bolt Size Dimensions (mm)
Stud Hole Barrel ID Barrel OD Palm Width Stud Centre Distance Barrel Length Total Length
ØE  ØA ØC D G H B J
6 RLDS 6-5 M5 5.3 3.8 5.5 8.5 9.0 6.0 10.0 33.0
RLDS 6-6 M6 6.4 3.8 5.5 8.5 10.5 8.0 10.0 34.5
10 RLDS 10-5 M5 5.3 4.5 6.0 9.0 9.0 6.0 10.0 36.0
RLDS 10-6 M6 6.4 4.5 6.0 9.0 10.5 8.0 10.0 37.5
16 RLDS 16-6 M6 6.4 5.5 8.5 13.0 10.5 8.0 20.0 46.5
RLDS 16-8 M8 8.4 5.5 8.5 13.0 13.0 10.0 20.0 49.0
RLDS 16-10 M10 10.5 5.5 8.5 13.0 15.0 12.0 20.0 51.0
25 RLDS 25-6 M6 6.4 7.0 10.0 14.0 10.5 8.0 20.0 48.5
RLDS 25-8 M8 8.4 7.0 10.0 16.0 13.0 10.0 20.0 51.0
RLDS 25-10 M10 10.5 7.0 10.0 17.0 15.0 12.0 20.0 53.0
RLDS 25-12 M12 13.0 7.0 10.0 19.0 16.0 13.0 20.0 54.0
35 RLDS 35-8 M8 8.4 8.2 12.5 17.0 13.0 10.0 20.0 55.0
RLDS 35-10 M10 10.5 8.2 12.5 19.0 15.0 12.0 20.0 57.0
RLDS 35-12 M12 13.0 8.2 12.5 21.0 16.0 13.0 20.0 58.0
50 RLDS 50-8 M8 8.4 10.0 14.5 20.0 13.0 10.0 28.0 65.0
RLDS 50-10 M10 10.5 10.0 14.5 22.0 15.0 12.0 28.0 67.0
RLDS 50-12 M12 13.0 10.0 14.5 24.0 16.0 13.0 28.0 68.0
RLDS 50-16 M16 17.0 10.0 14.5 28.0 19.0 16.0 28.0 71.0
70 RLDS 70-8 M8 8.4 11.5 16.5 24.0 13.0 10.0 28.0 68.0
RLDS 70-10 M10 10.5 11.5 16.5 24.0 15.0 12.0 28.0 70.0
RLDS 70-12 M12 13.0 11.5 16.5 24.0 16.0 13.0 28.0 71.0
RLDS 70-16 M16 17.0 11.5 16.5 30.0 19.0 16.0 28.0 74.0
95 RLDS 95-10 M10 10.5 13.5 19.0 28.0 15.0 12.0 35.0 80.0
RLDS 95-12 M12 13.0 13.5 19.0 28.0 16.0 13.0 35.0 81.0
RLDS 95-16 M16 17.0 13.5 19.0 32.0 19.0 16.0 35.0 84.0
120 RLDS 120-10 M10 10.5 15.5 21.0 32.0 15.0 12.0 35.0 85.0
RLDS 120-12 M12 13.0 15.5 21.0 32.0 16.0 13.0 35.0 86.0
RLDS 120-16 M16 17.0 15.5 21.0 32.0 19.0 16.0 35.0 89.0
RLDS 120-20 M20 21.0 15.5 21.0 38.0 22.0 20.0 35.0 92.0
150 RLDS 150-10 M10 10.5 17.0 23.5 34.0 15.0 12.0 35.0 93.0
RLDS 150-12 M12 13.0 17.0 23.5 34.0 16.0 13.0 35.0 94.0
RLDS 150-16 M16 17.0 17.0 23.5 34.0 19.0 16.0 35.0 97.0
RLDS 150-20 M20 21.0 17.0 23.5 40.0 22.0 20.0 35.0 100.0
185 RLDS 185-10 M10 10.5 19.0 25.5 37.0 15.0 12.0 40.0 97.0
RLDS 185-12 M12 13.0 19.0 25.5 37.0 16.0 13.0 40.0 98.0
RLDS 185-16 M16 17.0 19.0 25.5 37.0 19.0 16.0 40.0 101.0
RLDS 185-20 M20 21.0 19.0 25.5 40.0 22.0 20.0 40.0 104.0
240 RLDS 240-12 M12 13.0 21.5 29.0 42.0 16.0 13.0 40.0 108.0
RLDS 240-16 M16 17.0 21.5 29.0 42.0 19.0 16.0 40.0 111.0
RLDS 240-20 M20 21.0 21.5 29.0 45.0 22.0 20.0 40.0 114.0
300 RLDS 300-16 M16 17.0 24.5 32.0 48.0 19.0 16.0 50.0 119.0
RLDS 300-20 M20 21.0 24.5 32.0 48.0 22.0 20.0 50.0 122.0
400 RLDS 400-16 M16 17.0 27.5 38.5 55.0 25.0 16.0 70.0 140.0
RLDS 400-20 M20 21.0 27.5 38.5 55.0 25.0 20.0 70.0 140.0
500 RLDS 500-20 M20 21.0 31.0 42.0 60.0 25.0 20.0 70.0 150.0
630 RLDS 630-20 M20 21.0 34.5 44.0 60.0 25.0 20.0 80.0 160.0
800 RLDS 800-20 M20 21.0 40.0 52.0 75.0 25.0 20.0 100.0 190.0
1000 RLDS 1000-20 M20 21.0 44.0 58.0 85.0 25.0 20.0 100.0 190.0



Technical Information

Parameter
Complies to IEC 61328-1 Standard
Design and construction as per DIN 46235 Standard
Annealed material optimizes material and crimping properties
Flat contact surface and precise stud holes as per Metric Standard
Material – High conductivity ETP Copper
Finish – Electro tin plated

Brand

Raychem RPG
