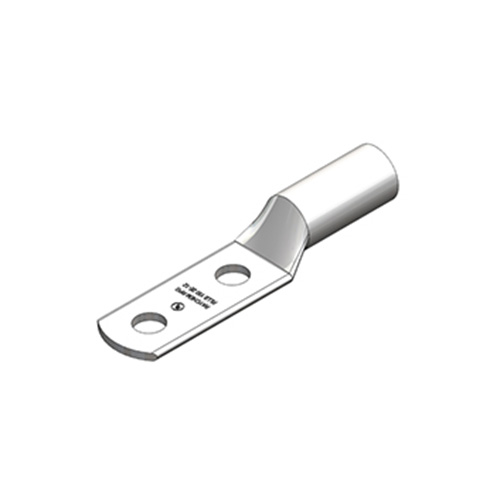

RLLBE 2E - Two-Hole Lugs - Heavy Duty

RLLBE 2E – Two-Hole Lugs – Heavy Duty

Longer length barrel with extra crimps for heavy duty loads. Two hole heavy duty lugs are best suited to avoid rotation or movement of lugs.

  • Two-Hole Long Extended Barrel Lugs for copper conductors ranging from 10 – 1000 mm2
Category:

Description

Nominal Cross Section mm2 Bolt Size Catalogue Code Dimensions (mm)
Stud Hole Hole Spacing Barrel ID Barrel OD Palm Width Stud Centre Distance Barrel Length Total Length
ØE  ØA ØC D G H B J
10 M5 RLLBE-10-2E-5 5.5 44.5 4.5 6.2 11.0 7.5 7.0 18.0 83.0
M6 RLLBE-10-2E-6 6.5 44.5 4.5 6.2 11.0 7.5 7.0 18.0 83.0
16 M5 RLLBE-16-2E-5 5.5 44.5 5.4 7.6 12.0 7.5 7.0 28.0 93.0
M6 RLLBE-16-2E-6 6.5 44.5 5.4 7.6 12.0 7.5 7.0 28.0 93.0
25 M6 RLLBE-25-2E-6 6.5 44.5 6.8 8.8 13.0 15.0 17.0 31.2 117.2
M8 RLLBE-25-2E-8 8.4 44.5 6.8 8.8 13.0 15.0 17.0 31.2 117.2
35 M6 RLLBE-35-2E-6 6.5 44.5 8.2 10.6 16.0 15.0 17.0 28.0 115.0
M8 RLLBE-35-2E-8 8.4 44.5 8.2 10.6 16.0 15.0 17.0 28.0 115.0
M10 RLLBE-35-2E-10 10.5 44.5 8.2 10.6 16.0 15.0 17.0 28.0 115.0
42 M6 RLLBE-42-2E-6 6.5 44.5 9.5 12.4 18.0 14.0 16.0 30.0 116.0
M8 RLLBE-42-2E-8 8.4 44.5 9.5 12.4 18.0 14.0 16.0 30.0 116.0
M10 RLLBE-42-2E-10 10.5 44.5 9.5 12.4 18.0 14.0 16.0 30.0 116.0
M12 RLLBE-42-2E-12 13.0 44.5 9.5 12.4 18.0 14.0 16.0 30.0 116.0
50 M6 RLLBE-50-2E-6 6.5 44.5 9.5 12.4 18.0 14.0 16.0 33.0 117.5
M8 RLLBE-50-2E-8 8.4 44.5 9.5 12.4 18.0 14.0 16.0 33.0 117.5
M10 RLLBE-50-2E-10 10.5 44.5 9.5 12.4 18.0 14.0 16.0 33.0 117.5
M12 RLLBE-50-2E-12 13.0 44.5 9.5 12.4 18.0 14.0 16.0 33.0 117.5
70 M8 RLLBE-70-2E-8 8.4 44.5 11.3 14.6 21.0 14.0 16.0 37.6 121.6
M10 RLLBE-70-2E-10 10.5 44.5 11.3 14.6 21.0 14.0 16.0 37.6 121.6
M12 RLLBE-70-2E-12 13.0 44.5 11.3 14.6 21.0 14.0 16.0 37.6 121.6
M14 RLLBE-70-2E-14 14.5 44.5 11.3 14.6 21.0 14.0 16.0 37.6 121.6
95 M8 RLLBE-95-2E-8 8.4 44.5 13.5 17.4 25.0 16.0 18.0 40.0 132.5
M10 RLLBE-95-2E-10 10.5 44.5 13.5 17.4 25.0 16.0 18.0 40.0 132.5
M12 RLLBE-95-2E-12 13.0 44.5 13.5 17.4 25.0 16.0 18.0 40.0 132.5
M14 RLLBE-95-2E-14 14.5 44.5 13.5 17.4 25.0 16.0 18.0 40.0 132.5
M16 RLLBE-95-2E-16 17.0 44.5 13.5 17.4 25.0 16.0 18.0 40.0 132.5
120 M8 RLLBE-120-2E-8 8.4 44.5 14.2 17.8 25.5 16.0 18.0 41.9 134.4
M10 RLLBE-120-2E-10 10.5 44.5 14.2 17.8 25.5 16.0 18.0 41.9 134.4
M12 RLLBE-120-2E-12 13.0 44.5 14.2 17.8 25.5 16.0 18.0 41.9 134.4
M14 RLLBE-120-2E-14 14.5 44.5 14.2 17.8 25.5 16.0 18.0 41.9 134.4
M16 RLLBE-120-2E-16 17.0 44.5 14.2 17.8 25.5 16.0 18.0 41.9 134.4
130 M8 RLLBE-130-2E-8 8.4 44.5 16.0 19.6 28.0 16.0 18.0 46.0 138.5
M10 RLLBE-130-2E-10 10.5 44.5 16.0 19.6 28.0 16.0 18.0 46.0 138.5
M12 RLLBE-130-2E-12 13.0 44.5 16.0 19.6 28.0 16.0 18.0 46.0 138.5
M14 RLLBE-130-2E-14 14.5 44.5 16.0 19.6 28.0 16.0 18.0 46.0 138.5
M16 RLLBE-130-2E-16 17.0 44.5 16.0 19.6 28.0 16.0 18.0 46.0 138.5
M18 RLLBE-130-2E-18 19.0 44.5 16.0 19.6 28.0 16.0 18.0 46.0 138.5
150 M8 RLLBE-150-2E-8 8.4 44.5 16.5 21.2 30.0 14.0 16.0 53.0 141.0
M10 RLLBE-150-2E-10 10.5 44.5 16.5 21.2 30.0 14.0 16.0 53.0 141.0
M12 RLLBE-150-2E-12 13.0 44.5 16.5 21.2 30.0 14.0 16.0 53.0 141.0
M14 RLLBE-150-2E-14 14.5 44.5 16.5 21.2 30.0 14.0 16.0 53.0 141.0
M16 RLLBE-150-2E-16 17.0 44.5 16.5 21.2 30.0 14.0 16.0 53.0 141.0
M18 RLLBE-150-2E-18 19.0 44.5 16.5 21.2 30.0 14.0 16.0 53.0 141.0
M20 RLLBE-150-2E-20 21.0 44.5 16.5 21.2 30.0 14.0 16.0 53.0 141.0
– RLLBE-150-2E-BL – 44.5 16.5 21.2 30.0 14.0 16.0 53.0 141.0
185 M8 RLLBE-185-2E-8 8.4 44.5 18.5 23.5 34.0 16.0 18.0 54.0 145.0
M10 RLLBE-185-2E-10 10.5 44.5 18.5 23.5 34.0 16.0 18.0 54.0 145.0
M12 RLLBE-185-2E-12 13.0 44.5 18.5 23.5 34.0 16.0 18.0 54.0 145.0
M14 RLLBE-185-2E-14 14.5 44.5 18.5 23.5 34.0 16.0 18.0 54.0 145.0
M16 RLLBE-185-2E-16 17.0 44.5 18.5 23.5 34.0 16.0 18.0 54.0 145.0
M18 RLLBE-185-2E-18 19.0 44.5 18.5 23.5 34.0 16.0 18.0 54.0 145.0
M20 RLLBE-185-2E-20 21.0 44.5 18.5 23.5 34.0 16.0 18.0 54.0 145.0
– RLLBE-185-2E-BL – 44.5 18.5 23.5 34.0 16.0 18.0 54.0 145.0
200 M8 RLLBE-200-2E-8 8.4 44.5 19.7 23.5 34.0 16.0 18.0 60.0 152.0
M10 RLLBE-200-2E-10 10.5 44.5 19.7 23.5 34.0 16.0 18.0 60.0 152.0
M12 RLLBE-200-2E-12 13.0 44.5 19.7 23.5 34.0 16.0 18.0 60.0 152.0
M14 RLLBE-200-2E-14 14.5 44.5 19.7 23.5 34.0 16.0 18.0 60.0 152.0
M16 RLLBE-200-2E-16 17.0 44.5 19.7 23.5 34.0 16.0 18.0 60.0 152.0
M18 RLLBE-200-2E-18 19.0 44.5 19.7 23.5 34.0 16.0 18.0 60.0 152.0
M20 RLLBE-200-2E-20 21.0 44.5 19.7 23.5 34.0 16.0 18.0 60.0 152.0
– RLLBE-200-2E-BL – 44.5 19.7 23.5 34.0 16.0 18.0 60.0 152.0
240 M8 RLLBE-240-2E-8 8.4 44.5 21.0 26.5 38.0 16.0 20.0 64.7 159.7
M10 RLLBE-240-2E-10 10.5 44.5 21.0 26.5 38.0 16.0 20.0 64.7 159.7
M12 RLLBE-240-2E-12 13.0 44.5 21.0 26.5 38.0 16.0 20.0 64.7 159.7
M14 RLLBE-240-2E-14 14.5 44.5 21.0 26.5 38.0 16.0 20.0 64.7 159.7
M16 RLLBE-240-2E-16 17.0 44.5 21.0 26.5 38.0 16.0 20.0 64.7 159.7
M18 RLLBE-240-2E-18 19.0 44.5 21.0 26.5 38.0 16.0 20.0 64.7 159.7
M20 RLLBE-240-2E-20 21.0 44.5 21.0 26.5 38.0 16.0 20.0 64.7 159.7
– RLLBE-240-2E-BL – 44.5 21.0 26.5 38.0 16.0 20.0 64.7 159.7
300 M10 RLLBE-300-2E-10 10.5 44.5 23.5 30.0 43.0 22.0 22.0 74.0 181.5
M12 RLLBE-300-2E-12 13.0 44.5 23.5 30.0 43.0 22.0 22.0 74.0 181.5
M14 RLLBE-300-2E-14 14.5 44.5 23.5 30.0 43.0 22.0 22.0 74.0 181.5
M16 RLLBE-300-2E-16 17.0 44.5 23.5 30.0 43.0 22.0 22.0 74.0 181.5
M18 RLLBE-300-2E-18 19.0 44.5 23.5 30.0 43.0 22.0 22.0 74.0 181.5
M20 RLLBE-300-2E-20 21.0 44.5 23.5 30.0 43.0 22.0 22.0 74.0 181.5
– RLLBE-300-2E-BL – 44.5 23.5 30.0 43.0 22.0 22.0 74.0 181.5
400 M10 RLLBE-400-2E-10 10.5 44.5 28.5 36.5 52.5 17.0 19.0 84.0 185.5
M12 RLLBE-400-2E-12 13.0 44.5 28.5 36.5 52.5 17.0 19.0 84.0 185.5
M14 RLLBE-400-2E-14 14.5 44.5 28.5 36.5 52.5 17.0 19.0 84.0 185.5
M16 RLLBE-400-2E-16 17.0 44.5 28.5 36.5 52.5 17.0 19.0 84.0 185.5
M18 RLLBE-400-2E-18 19.0 44.5 28.5 36.5 52.5 17.0 19.0 84.0 185.5
M20 RLLBE-400-2E-20 21.0 44.5 28.5 36.5 52.5 17.0 19.0 84.0 185.5
– RLLBE-400-2E-BL – 44.5 28.5 36.5 52.5 17.0 19.0 84.0 185.5
500 M10 RLLBE-500-2E-10 10.5 44.5 30.0 39.0 56.0 20.0 20.0 85.0 195.0
M12 RLLBE-500-2E-12 13.0 44.5 30.0 39.0 56.0 20.0 20.0 85.0 195.0
M14 RLLBE-500-2E-14 14.5 44.5 30.0 39.0 56.0 20.0 20.0 85.0 195.0
M16 RLLBE-500-2E-16 17.0 44.5 30.0 39.0 56.0 20.0 20.0 85.0 195.0
M18 RLLBE-500-2E-18 19.0 44.5 30.0 39.0 56.0 20.0 20.0 85.0 195.0
M20 RLLBE-500-2E-20 21.0 44.5 30.0 39.0 56.0 20.0 20.0 85.0 195.0
– RLLBE-500-2E-BL – 44.5 30.0 39.0 56.0 20.0 20.0 85.0 195.0



Technical Information

Parameter
Extended longer length barrel permits extra crimps for heavy-duty loads
Stud hole spacing as per NEMA standards
Best suited in application where two bolts are needed to avoid rotation or movement of lugs
Annealed material optimizes material and crimping properties
Flat contact surface and precise stud holes as per the Metric Standard
Material – High conductivity ETP Copper
Electro tin plated



Ordering Information
Add following suffix
A – Without Window
B – With Window
C – With Rectangular Notch
D – Without Window & Flare Barrel Entry
E – With Window & Flare Barrel Entry
F – With Rectangular Notch & Flare Barrel Entry
Also available with Inspection Window

Brand

Raychem RPG
