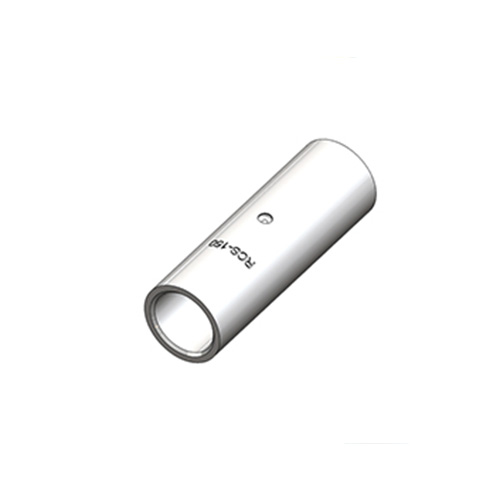

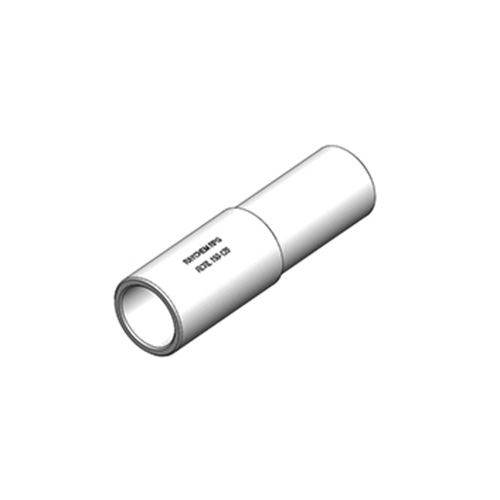

RCS – Two-way Splice Connectors – Short Barrel
Standard barrel with crimps for reliable connection
- Two-Way Splice Short Barrel Connectors for copper conductors ranging from 2.5 – 1000 mm2
Description
| Nominal Cross Section mm2 | Catalogue Code | Dimensions (mm) | ||
|---|---|---|---|---|
| ØA | ØC | J | ||
| 1.5 | RCS 1.5 | 1.8 | 3.7 | 12.0 |
| 2.5 | RCS 2.5 | 2.4 | 4.0 | 15.0 |
| 4 | RCS 4 | 3.1 | 4.8 | 15.0 |
| 6 | RCS 6 | 3.8 | 5.5 | 15.0 |
| 10 | RCS 10 | 4.5 | 6.2 | 20.0 |
| 16 | RCS 16 | 5.4 | 7.1 | 20.0 |
| 25 | RCS 25 | 6.8 | 8.8 | 32.0 |
| 35 | RCS 35 | 8.2 | 10.6 | 36.0 |
| 50 | RCS 50 | 9.5 | 12.4 | 40.0 |
| 70 | RCS 70 | 11.3 | 14.6 | 45.0 |
| 95 | RCS 95 | 13.5 | 17.4 | 45.0 |
| 120 | RCS 120 | 15.0 | 19.4 | 45.0 |
| 150 | RCS 150 | 16.5 | 21.2 | 55.0 |
| 185 | RCS 185 | 18.5 | 23.5 | 60.0 |
| 240 | RCS 240 | 21.0 | 26.5 | 80.0 |
| 300 | RCS 300 | 23.5 | 30.0 | 85.0 |
| 400 | RCS 400 | 28.5 | 36.5 | 85.0 |
| 500 | RCS 500 | 30.0 | 39.0 | 100.0 |
| 630 | RCS 630 | 35.0 | 45.0 | 110.0 |
| 800 | RCS 800 | 39.0 | 50.6 | 150.0 |
| 1000 | RCS 1000 | 43.0 | 56.2 | 170.0 |
Technical Information
| Parameter |
|---|
| Suitable for limited space application |
| Internal wire stop prevents over Insertion of cable |
| Material – High conductivity ETP Copper |
| Finish – Electro tin plated |
Brand
Raychem RPG
